Tooth Anatomy & Histology

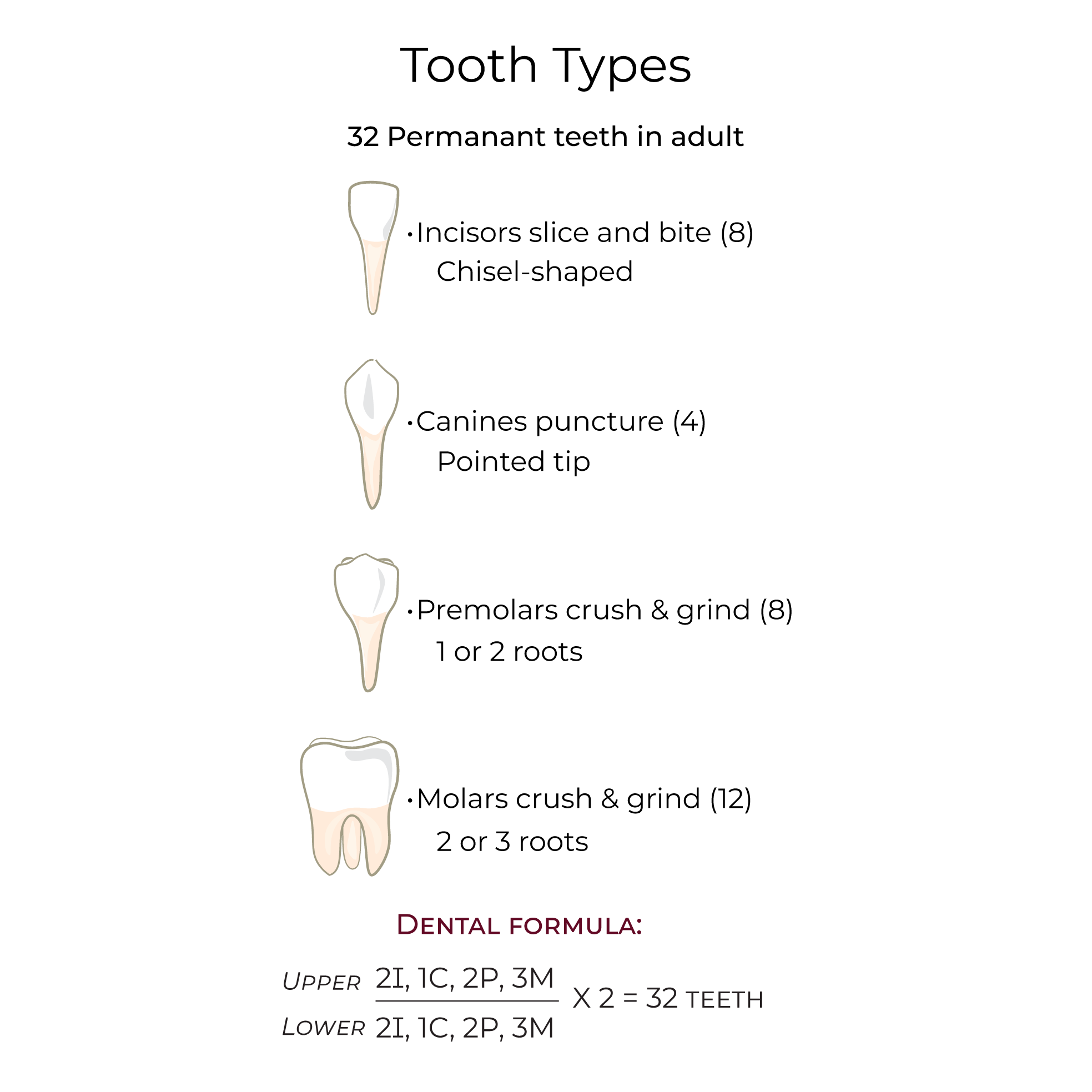

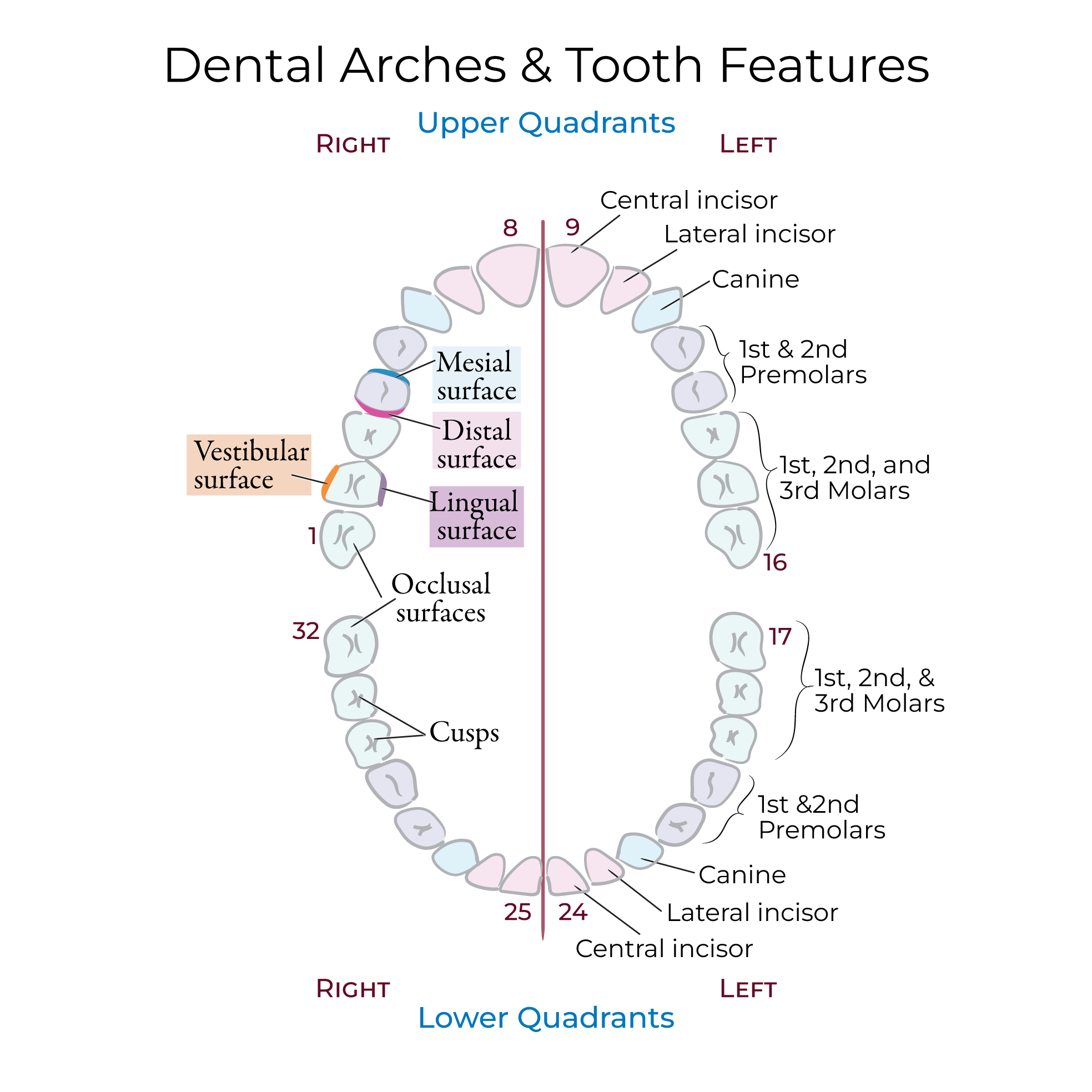

Dentition
Comprise layers of calcified tissues surrounding a cavity that houses neurovascular structures.
Key Features
Regions
  • The crown, which lies above the gums.
  • The neck, the constricted area.
  • The root, which lies within the alveoli (aka, sockets) of the jaw bones.
  • Pulp cavity lies in the center of the tooth, and extends into the root as the root canal.
  • Neurovascular structures pass through the apical foramen to reach the pulp cavity.
Layers
  • Dentin: comprises calcified organic matrix and inorganic hydroxyapatite crystals; this makes the dentin similar to, but harder than, bone.
  • Cementum: covers dentin in the neck and root regions; is anchored to the surrounding periodontal membrane by ligaments (not shown, here).
  • Enamel: covers the crown of the tooth; it comprises enamel rods (aka, prisms), and is the hardest material in the body.
Bony attachments
  • Sockets = alveoli
  • The periodontal membrane (aka, ligament) lies between the tooth and the bone
  • Gingiva epithelium covers bone (gingiva refers to the gums)
    • Gingival sulcus is the small space between the gingiva and the neck of the tooth. This space is enlarged in periodontal disease.
